Vertex AI Search & Flutter Demo

This project is a demo that integrates a Vertex AI Agent with a multi-platform Flutter app. Flutter is used as the client app framework, Vertex AI Search is used as a vector DB, and Reasoning Engine helps us build and deploy an agent with Agent Engine.

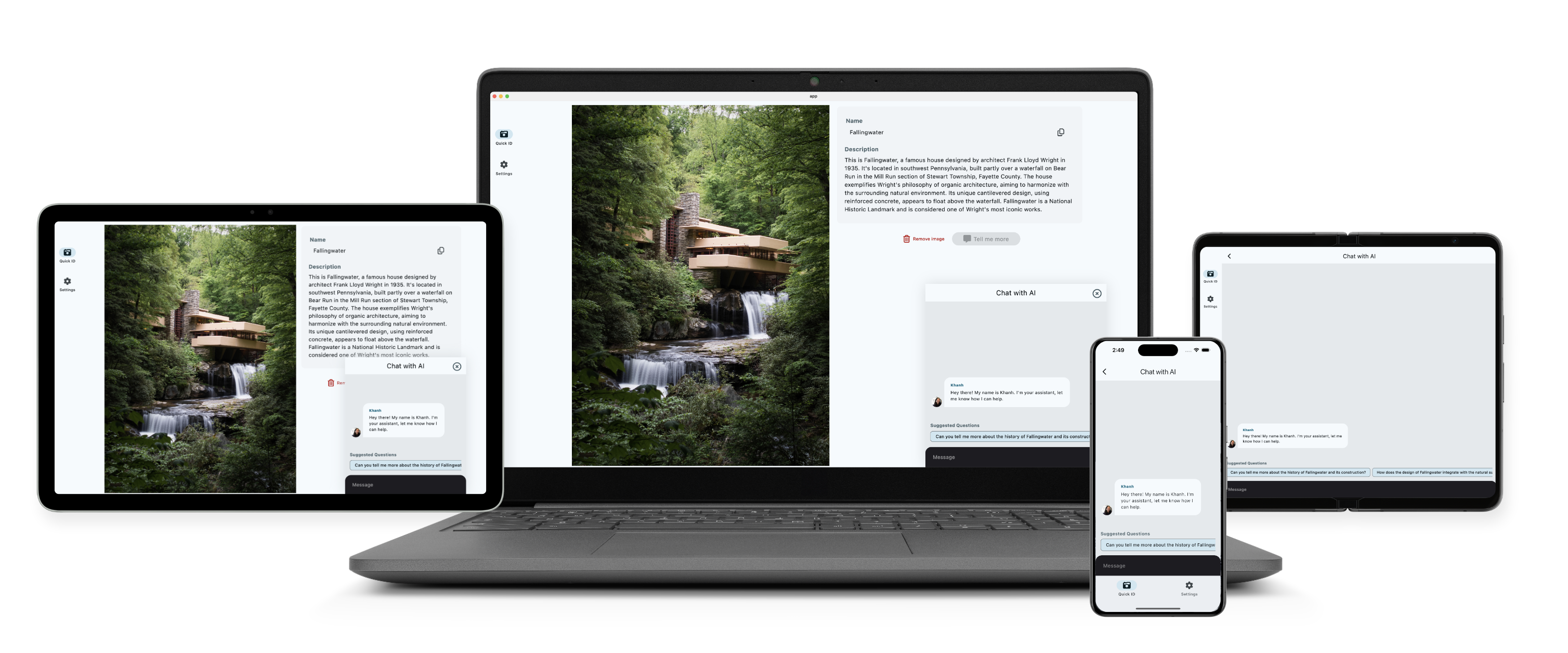

Users can run the Flutter app and take or upload a photo of a landmark. The app identifies the subject name and provides a brief description.

To learn more about the subject of the photo, tap "tell me more" to chat with Khanh, an AI agent build built with Vertex AI Search, and ask follow-up questions about the history of subject in the photo based on information Wikipedia.

The agent can also identify merchandise from the Google Merchandise Store and provide product name, description, pricing, and purchase link by referencing a Google Merchandise store dataset.

Note

Check out the Google I/O 2024 talk for a full walkthrough: Build generative AI agents with Vertex AI Search and Flutter.

Demo

Try the live demo app

Getting Started

Preparing Vertex AI Search search app

Create a search data store on Vertex AI Search.

On the Console of your Google Cloud project, open Agent Builder > Data Stores > CREATE DATA STORE > Cloud Storage > Structured data (JSONL).
At Select a folder or file choose FILE, and enter gcp-samples-ic0-ag/src/google_merch_shop_items.json. Click CONTINUE.
At Review schema page, click CONTINUE.
In Configure your data store page, choose Location of your data store as us and enter Your data store name as gms.
Click CREATE.

Check the data store ID. Open Data Stores and click gms. Make sure the Number of documents is 204 items. Take a memo of the Data store ID. This will be the search engine ID.
Create a search app.

On the Console, open Agent Builder > Apps > CREATE APP. Choose Search.
On Search app configuration, opt out Enterprise edition features and Advanced LLM features options.
Enter Your app name as gms_test, External name as your company name, and Location of your app as us.
Click CONTINUE. On Data Stores page, choose gms and click CREATE. This will start building a search index with the gms data store which will take about 5 minutes.

Preview the app. After 5 minutes, open Preview and type Dino on the search box. You should see the search results with Chrome Dino related items.

Building & deploying the agent with Vertex AI Search

Deploy a Cloud Run app: Edit /ag-web/app/app.py and /ag-web/app/deploy.sh and set the project ID, GCS bucket name and the search engine ID. Run deploy.sh to deploy the Run app. Open ag-web app on the Cloud Run console, and find the hostname (eg ag-web-xxxxxx.a.run.app).
Deploy a Reasoning Engine agent: Open Cloud Workbench and upload /ag-web/ag_setup_re.ipynb. Open the Notebook and edit the GOOGLE_SHOP_VERTEXAI_SEARCH_URL with the Run hostname. Run the Notebook from the start to deploy the agent to the Reasoning Engine runtime. From the output on the deployment, find the reasoning engine ID. The output format is projects/PROJECT_ID/locations/LOCATION/reasoningEngines/REASONING_ENGINE_ID.
Redeploy the Cloud Run app: Edit /ag-web/app/app.py and set the REASONING_ENGINE_ID. Run /ag-web/app/deploy.sh to redeploy it.

Running the Flutter App

Ensure that you have Flutter set up on your machine.
Flutter enables building multiplaform apps, so this app has been built to be run on iOS, Android, web, and desktop. Make sure to install any preferred target platform (aka where you want to run the app) requirements such as the iOS Simulator, Android Emulator, an Android phone, Chrome browser, etc.)
Change directory into the Flutter project using cd app
Set up a Firebase project and connect it to this Flutter app by following step 1 in these instructions. Only complete Step 1! Don't add the Vertex AI for Firebase Dart SDK because this source code already adds it as a dependency.
Update the variable CloudRunHost in app/lib/config.dart with your Cloud Run endpoint host.
On the terminal, run flutter pub get to get all project dependencies.
Run the app using flutter run -d <device-id> where <device-id> is the ID for an available device.

Tip

Get available devices by running flutter devices ex: AA8A7357, macos, chrome.

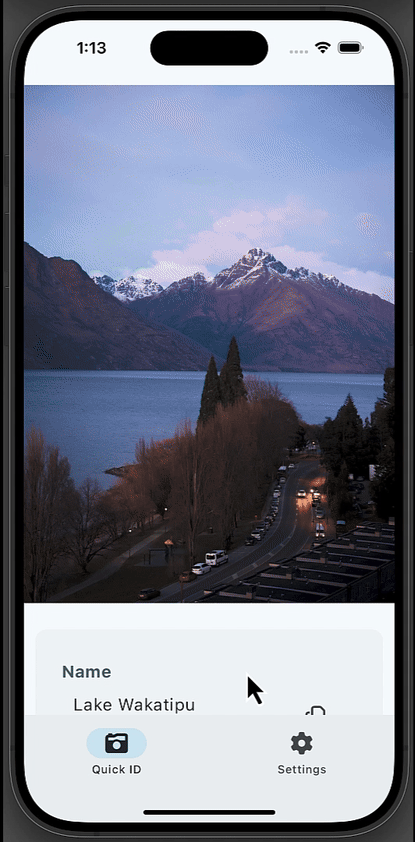

Using the app

Once the app is running, select an image for analysis. Once the image subject has been identified click the "tell me more" button to start an Agent chat session.
[Optional] Running the app on a mobile device with a camera? You can enable the feature for taking photos directly within the app. In lib/functionality/adaptive/capabilities.dart set Capabilities.hasCamera to true like so:

Before

static bool get hasCamera {
  return false;
}

After

static bool get hasCamera {
  return true;
}

Tech stack

Vertex AI Search
Flutter
Cloud Run
Vertex AI for Firebase Dart SDK

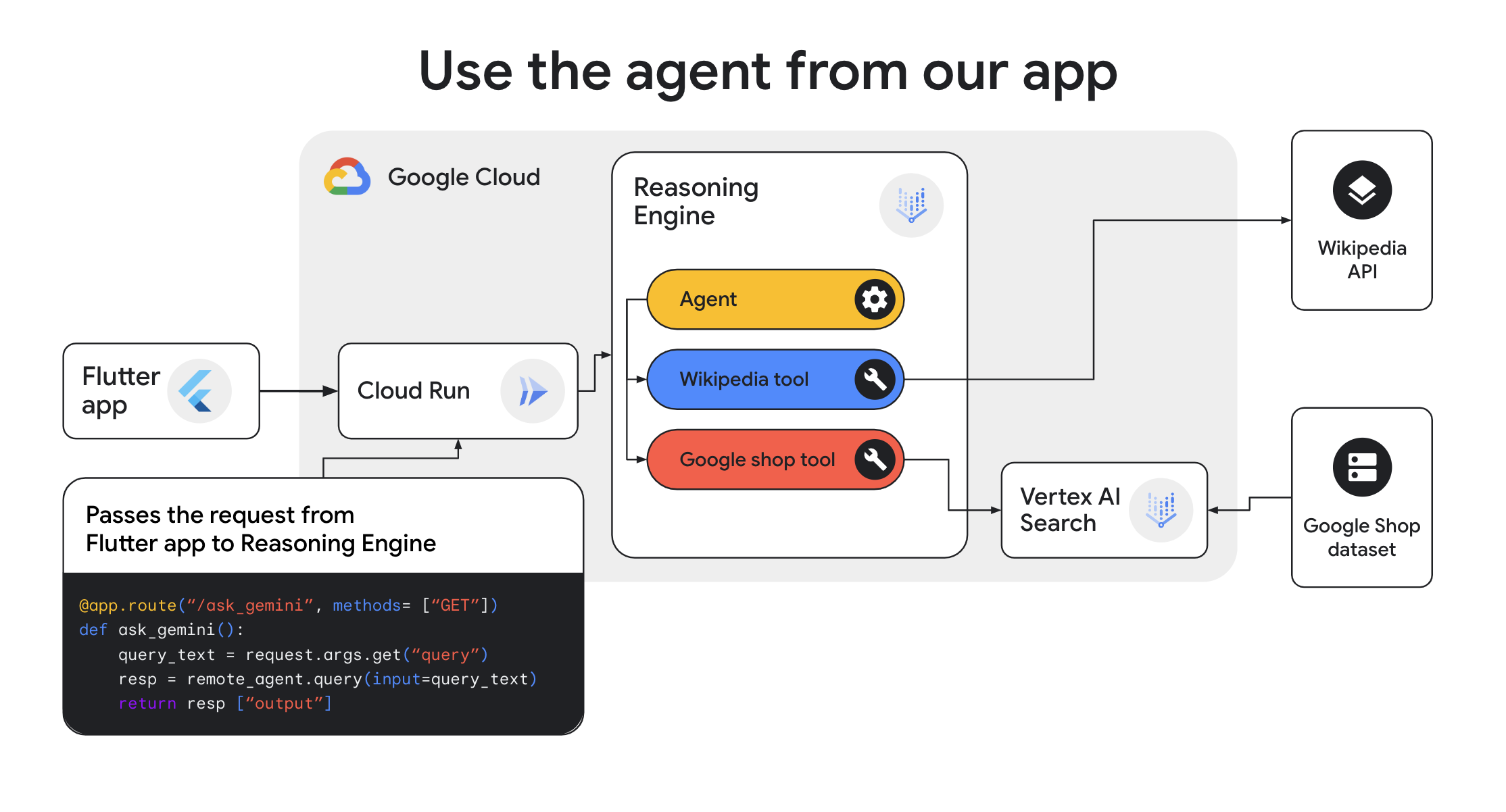

App Architecture

Made with ❤️ by Kaz Sato & Khanh Nguyen
